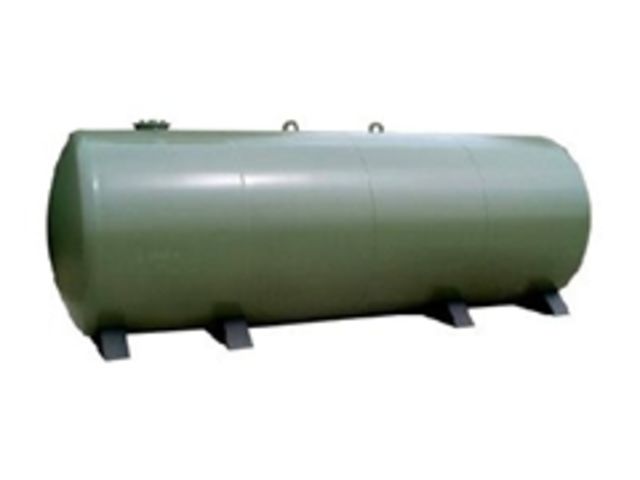

Doppelschichtiger Tank, oberirdisch :

Verweis : CDFA

Zisternen unter Europäischen Normen EN-12285-1 und EN 12285- 2 Doppelschichtiger

Kapazität (Litern)  Durchmesser (mm)    Länge (mm)           Wiegen       Gewicht (Kg *

     1 500                          1 250                          1 580                             2                    580

     2 000                          1 250                          2 000                             2                    700

     3 000                          1 250                          2 720                             2                    880

     4 000                          1 250                          3 560                             2                 1 100

     5 000                          1 500                          3 150                             2                 1 200

     6 000                          1 500                          3 710                             2                 1 370

     8 000                          1 900                          3 260                             2                 1 760

   10 000                          1 900                          3 960                             2                  2 060

   12 000                          1 900                          4 670                             3                  2 380

   15 000                          1 900                          5 910                             3                  2 940

   20 000                          1 900                          7 860                             4                  3 820

   25 000                          1 900                          9 810                             5                   4 720

   30 000                          1 900                        11 510                             5                  5 571

   20 000                          2 500                          4 680                             2                  3 610

   25 000                          2 500                          5 680                             3                  4 230

   30 000                          2 500                          6 680                             3                  4 950

   40 000                          2 500                          8 830                             4                  6 390

   50 000                          2 500                       10 820                             5                  7 600

   60 000                          2 500                       12 970                             6                  9 100

   40 000                          3 000                         6 280                             3                  6 200

   50 000                          3 000                         7 820                             4                  7 470

   60 000                          3 000                         9 170                             4                   8 680

   80 000                          3 000                       12 220                             5                11 160

 100 000                         3 000                        15 080                             6                13 590

 120 000                         3 000                        17 700                             8                15 930

(*) mono-eingeteilt  ohne Zubehör
